Cantilever Motorized Wire Payoff Machine Cable Payoff

Place of Origin : Wuxi

Brand Name : HNT

Certification : ISO9001:2008, CE, High-tech enterprise

MOQ : 1 set

Price : negotiable

Packaging Details : according to customer's requirements

Delivery Time : 30-120 days

Payment Terms : T/T, L/C

Payoff Method : Motorized

Structure : Single or Double Reel Payoff

Brake : pneumatic brake;

Control Method : PLC+HMI

Bobbin Lifting Method : electric lifiting

Line Speed : Max. 500m/min

Contact Now

Cantilever Payoff

Description:

1. The pay-off can work with drawing machine, annealing machine, extrusion line, coiling and packing machine, rewinding machine, ect...

2. Machine can be designed to Double reel payoff and Single Reel Payoff;

3. Structure: The pintle table is fixed, can not be moved from left and right;

4. Wire shaft lifting mode: electric lifting;

5. Pintle Clamp type: Cylinder;

6. Wire feeding power: AC motor + frequency converter + reducer;

7. Wire feeding speed control: automatically control the motor wire feeding speed;

8. Brake: pneumatic brake;

9. Main electrical configuration, frequency converter. Contactor, intermediate relay, transformer. The switch. The electric motor. Speed reducer, etc;

10. Control system with PLC + HMI for the speed detection so that the whole system work with the line speed in synchronization.

- Double reel Pay-off Specification:

Model	Inner diameter (mm)	Outer diameter (mm)	Max load (kg)
PF-1000M	630 - 1000	300 - 750	1500
PF-1250M	800 - 1250	450 - 950	2500
PF-1600M	1000 - 1600	600 - 1200	4000

-Single Reel Pay-off Specification:

Model	Inner diameter (mm)	Outer diameter (mm)	Max load (kg)
PFS-630M	400 - 630	300 - 475	600
PFS-800M	630 - 800	475 - 600	1000
PFS-1000M	800 - 1000	600 - 750	1500
PFS-1250M	1000 - 1250	750 - 950	2500

Cantilever Motorized Wire Payoff Machine Cable Payoff

Product Tags:

Cantilever Wire Payoff Machine

Motorized Wire Payoff Machine

Motorized Cable Payoff

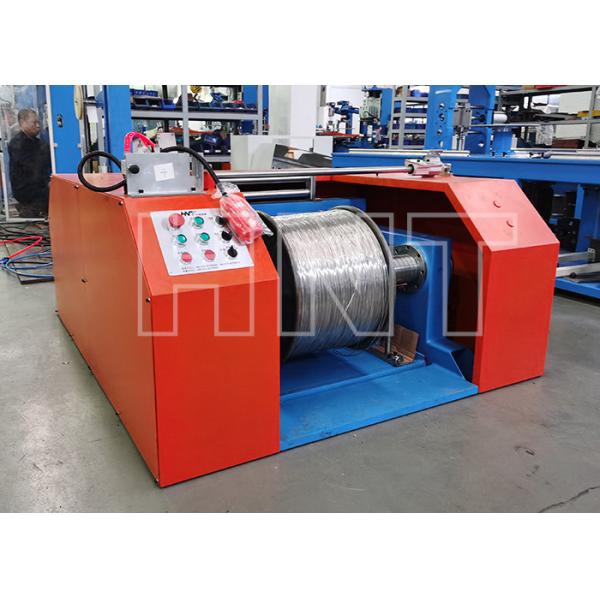

Cantilever Motorized Wire Payoff Machine Cable Payoff Images
